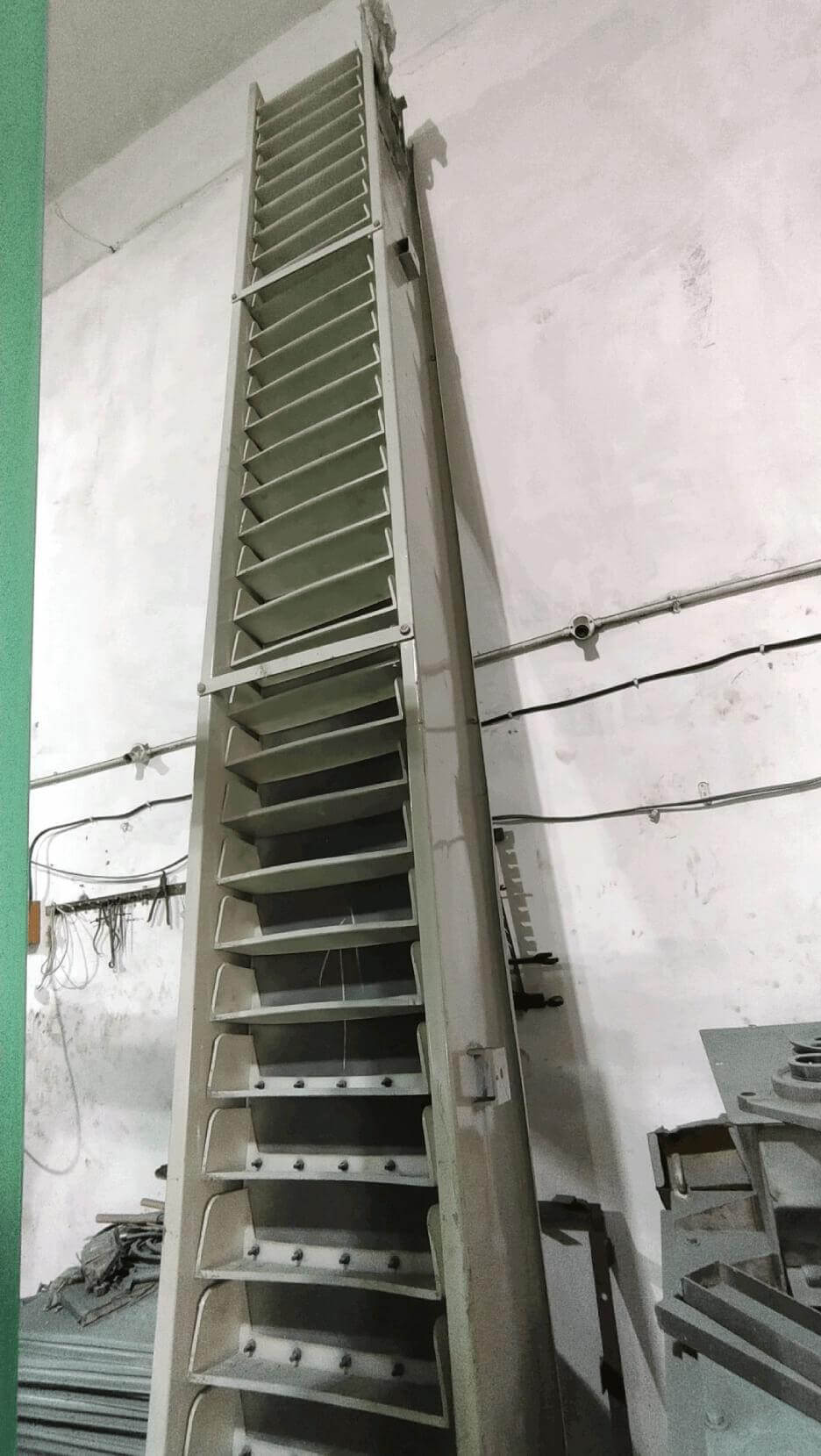

Bucket Lift
A heavy duty Bucket Elevator and Bucket Lift engineered for vertical bulk material handling — moving grain, minerals, chemicals and powders between floors, hoppers and silos without spillage or product damage.
35+
Years of experience
700+
Customers served
Global
Export support
Machine Overview
Bucket Elevator & Bucket Lift Overview
Swastik Technology’s Bucket Elevator is a heavy duty vertical material handling machine engineered to lift bulk material such as grain, flour, minerals, chemicals and granular product from a low intake point to a high discharge point without damaging the product or spilling material along the way. Also referred to as a Bucket Lift or Bucket Conveyor, the machine uses a continuous loop of belt or chain fitted with evenly spaced buckets that scoop material at the base, carry it upward inside an enclosed casing, and discharge it at the head. As an established Bucket Elevator Manufacturer and Bucket Lift Manufacturer, Swastik Technology builds this Material Handling Equipment in both belt and chain driven configurations, so processors can choose a lighter design for free flowing material or a Heavy Duty Bucket Lift for abrasive or high temperature loads. Flour mills, rice mills, feed plants, seed processing units, chemical plants and bulk storage facilities rely on this Vertical Conveyor to move product between floors, into silos, hoppers and storage bins, or between stages of a processing line. Whether a plant needs a compact Bucket Lift Machine for a single storey site or an Industrial Bucket Lift engineered for continuous multi shift operation, Swastik Technology matches the bucket type, drive speed and casing height to the product and required throughput.
Equipment
What Is a Bucket Elevator?
A Bucket Elevator is a mechanical conveying system built to move bulk material vertically using a series of buckets mounted on an endless belt or chain that runs between a head pulley and a boot pulley inside a fully enclosed casing. Material is fed into the boot section, where each bucket scoops a measured quantity as it passes through the material bed. The buckets then travel upward along the vertical run and, on reaching the head, discharge their contents either by gravity or centrifugal action into a chute, hopper or the next stage of the process line. Because the entire elevating path is enclosed, this Bucket Lifting System keeps dust contained, protects the product from contamination and allows continuous, unattended operation at mill or plant scale. Depending on the application, the same working principle is supplied with a belt for grain, flour and lightweight granular material, or with a chain for heavier, hot or abrasive bulk material such as minerals, clinker or chemical powders, which is why it is also known on plant drawings as a Grain Bucket Lift. Built specifically for vertical lift, this machine remains one of the most space efficient and reliable ways to move bulk material between floors or process stages, and it is commonly specified as a Bucket Conveyor within a wider Industrial Conveyor System.
How It Works
How Does a Bucket Lift Work?
1
Feeding
Bulk material is fed into the boot section at the base of the machine at a controlled rate.
2
Scooping
Buckets mounted on the belt or chain scoop material as they pass through the feed zone at the bottom of the unit.
3
Vertical Lift
The loaded buckets travel upward through the enclosed casing, carrying material to the required height.
4
Discharge
At the head pulley, buckets invert and discharge material by gravity or centrifugal action into the outlet chute.
5
Return
Empty buckets return down the opposite side of the casing to be reloaded at the boot, completing a continuous cycle.
Machine Advantages
Key Features of Our Bucket Elevator
Enclosed casing design that contains dust and protects material from contamination.
Available in belt-driven or chain-driven configurations depending on material and duty.
Robust construction suited for continuous, heavy-duty operation.
Configurable bucket spacing, size and material to match product characteristics.
Compact vertical footprint compared to inclined or horizontal conveyor systems.
Smooth, low spillage discharge at the head pulley.
Suitable for paddy, wheat, maize, pulses and seed in grain-handling duty.
Built for continuous duty applications in mills and processing plants.
Low maintenance drive with easily accessible inspection points.
Capacities ranging from small batch operations to full mill scale.
Uses
Applications of the Bucket Lift
Flour Mills & Rice Mills
Used as a Grain Bucket Lift to lift paddy, wheat, rice and flour between milling stages and into storage silos.
Feed & Pulse Processing Plants
Moves feed ingredients, pulses and grain between cleaning, grading and packing stations.
Seed Processing Units
Lifts seed ahead of grading and treatment equipment.
Chemical & Fertilizer Plants
Handles powders and granules suited to abrasive or heavier bulk material.
Cement & Minerals Processing
Used as a Heavy Duty Bucket Lift configuration for clinker, minerals and aggregate transfer.
Sugar & Food Processing
Moves sugar, grains and food grade material with hygienic construction.
Processing
Materials Processed by This Bucket Conveyor
✓
Paddy
✓
Wheat
✓
Maize
✓
Pulses
✓
Grain and seed
✓
Flour
✓
Minerals and ores
✓
Fertilizer
Business Benefits
Benefits of Using a Bucket Elevator
Moves bulk material vertically with a minimal floor footprint.
Reduces manual handling and product damage compared to open conveying.
Enclosed casing controls dust and protects material from moisture and contamination.
Belt and chain options let one machine range cover light and heavy duty material.
Improves plant layout efficiency by connecting floor levels directly.
Continuous duty design suited to mill and plant scale throughput.
Lower maintenance cost compared with pneumatic conveying alternatives.
Configurable capacity, height and bucket type to match exact process requirements.
Why Swastik Technology
Why Choose Swastik
35+
Years of Manufacturing Experience
Decades of experience in designing and manufacturing industrial processing machinery.
700+
Customers Served
Machinery supplied to customers across different processing industries.
⚙
Engineering & Customization
Solutions can be designed around specific production requirements.
🌎
Export Support
Support for machinery requirements across domestic and international markets.
✓
Direct Support
Direct communication with the manufacturing and technical team.
Relevant Plants
Relevant Machines
Frequently Asked Questions
FAQs About Bucket Lift
The two terms are used interchangeably in the industry. Both describe the same vertical lifting machine, a series of buckets mounted on a belt or chain that carries bulk material from a low point to a high discharge point inside an enclosed casing.
A belt-driven design uses buckets mounted on a rubber or fabric belt and suits lighter, free flowing material at moderate speed, while a chain-driven design mounts buckets on one or two strands of chain and is built for heavier, abrasive, hot or high capacity duty.
Depending on configuration, it can handle grain, flour, seed, pulses, minerals, chemical powders, fertilizer, sugar and similar bulk material.
It is usually installed wherever bulk material needs to move between floor levels, from intake to storage silos, between cleaning and grading stages, or feeding a mill, dryer or packing line.
Yes. As a Bucket Elevator Manufacturer, Swastik Technology configures bucket type, belt or chain speed, casing height and capacity to match the customer’s material characteristics and plant layout.
Sizing depends on required throughput, lift height, material bulk density and available floor space. Share these details with our engineering team and they will recommend a suitably sized Bucket Lift for your plant.
