Conveyor Belt
A heavy duty Belt Conveyor and Conveyor Belt line engineered to move grain, seed and peanuts between cleaning, grading, drying and packing stages smoothly, without spillage, product damage or manual carrying.
35+
Years of experience
700+
Customers served
Global
Export support
Machine Overview
Conveyor Belt Overview

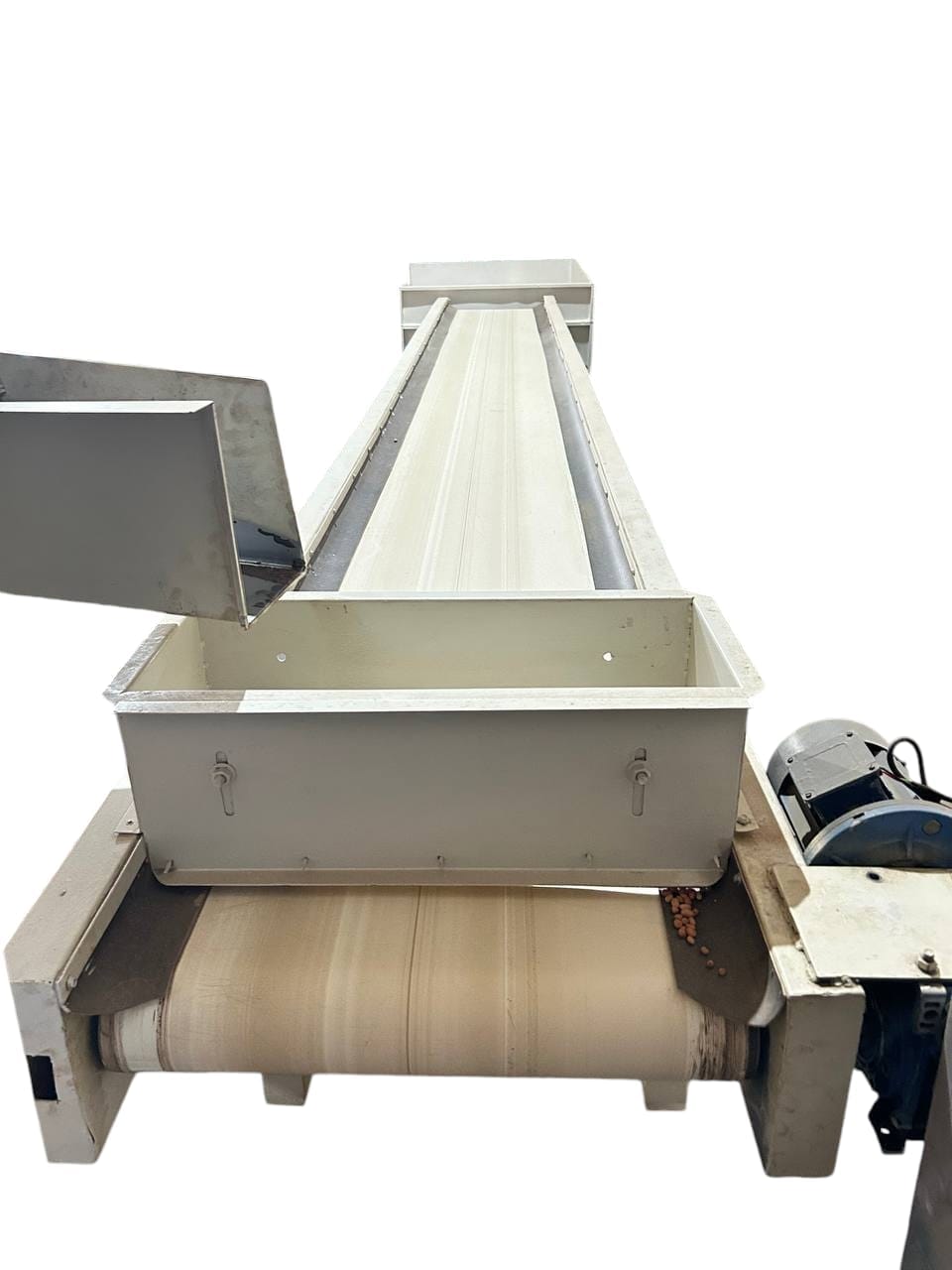

Swastik Technology’s Belt Conveyor is a continuous transport machine that carries loose crop, bagged goods or processed product along a flat or troughed belt driven by a motor and gearbox. Built as an Industrial Belt Conveyor for flour mills, seed plants and groundnut processors, it links the machines on a cleaning line so product flows from one stage to the next without hand carrying. As an established Belt Conveyor Manufacturer and Conveyor Belt Manufacturer, Swastik Technology supplies the complete Conveyor Belt Machine, covering frame, rollers, drive, tensioner and belting, in lengths and widths matched to the plant layout. Whether the requirement is a simple Material Handling Conveyor feeding a single hopper or a full Belt Conveyor System serving a multi-machine processing plant, belt type, speed and incline are selected for the crop and the throughput. The range also includes a Transfer Conveyor for moving product between lines and a Bulk Material Conveyor for high-volume loading and storage duty, and every unit is designed to sit neatly beside our Destoner Machine and grading equipment.
Equipment
What Is a Belt Conveyor?
A Belt Conveyor is a machine in which an endless loop of belting runs over a drive pulley and a tail pulley, carrying material placed on its upper surface from the loading point to the discharge point. The belt is supported by idler rollers or a slider bed, and the drive pulley grips it by friction to keep it moving at a steady speed. Because the product rides on the belt rather than being pushed or scooped, it is handled gently, which matters for seed, in-shell peanuts and other crops where cracking or bruising lowers value.
The Conveyor Belt is the moving surface itself, and it is chosen for the job. PVC and PU belting are common for dry crops, while a Food Grade Belt Conveyor uses suitable belting and contact surfaces for seed and food applications where cleanability is specified. Fitted to a rigid frame, the same machine can run flat, inclined or in a troughed profile that carries more product on the same belt width.
How It Works
How Does a Belt Conveyor Work?
1
Loading
Product is fed onto the belt from a hopper, destoner discharge or elevator outlet at a controlled rate.
2
Belt Drive
A motor and gearbox turn the drive pulley, which pulls the Conveyor Belt forward by friction.
3
Support and Tracking
Idler rollers carry the load and keep the belt running centrally along the frame.
4
Transport
The Conveyor Belt carries product flat, up a gentle incline or through a trough to the next machine.
5
Discharge
Product leaves over the head pulley into the next machine, bin or bag while a scraper clears the belt.
Machine Advantages
Key Features of Our Belt Conveyor
Product leaves over the head pulley into the next machine, bin or bag while a scraper clears the belt.
Flat, inclined and troughed configurations to suit the plant layout.
Adjustable belt speed through gearbox selection or a variable frequency drive.
Robust frame construction suited to continuous, heavy-duty operation.
Conveyor Belt material in PVC or PU chosen to match the crop and cleaning needs.
Screw-type tensioning and simple belt tracking adjustment.
Skirt rubbers at loading points to prevent spillage.
Low power consumption relative to the quantity of material moved.
Rollers and bearings that are easy to reach for inspection.
Mild steel or stainless steel contact parts depending on the crop.
Uses
Applications of the Belt Conveyor
Flour Mills & Rice Mills
Carries wheat and paddy between cleaning, milling and bagging stages.
Groundnut & Peanut Processing
Works as a Peanut Conveyor Belt, moving in-shell and shelled peanuts between decorticator, grader and dryer.
Seed Companies & Multiplication Farms
Works as a Seed Conveyor Belt that carries graded seed gently to packing without mixing lots.
Grain Storage & Silos
Serves as a Grain Conveyor Belt feeding bins, silos and bagging stations.
Sesame & Pulse Cleaning Lines
Links destoner, grader and packing machines on a continuous line.
Truck & Wagon Loading
Speeds up bag and bulk dispatch with loading and unloading conveyors.
Processing
Crops & Materials Conveyed
✓
Wheat
✓
Rice and paddy
✓
Maize
✓
Pulses
✓
Peanuts and groundnut
✓
Sesame seed
✓
Sunflower seed
✓
Mustard seed
Business Benefits
Benefits of Using a Belt Conveyor
Replaces manual carrying and bag shifting between processing stages.
Keeps production continuous, with no waiting for the next batch to be moved.
Handles product gently, reducing breakage in seed and peanuts.
Cuts spillage and floor losses at loading and transfer points.
Lowers labour cost and the safety risk of heavy manual lifting.
Matches Conveyor Belt speed to the machines on either side to avoid choke points.
Runs quietly with low power draw compared with many other conveying methods.
Configurable length, width and incline to fit existing plant layouts.
Why Swastik Technology
Why Choose Swastik
35+
Years of Manufacturing Experience
Decades of experience in designing and manufacturing industrial processing machinery.
700+
Customers Served
Machinery supplied to customers across different processing industries.
⚙
Engineering & Customization
Solutions can be designed around specific production requirements.
🌎
Export Support
Support for machinery requirements across domestic and international markets.
✓
Direct Support
Direct communication with the manufacturing and technical team.
Relevant Plants
Relevant Machines
Frequently Asked Questions
FAQs About Belt Conveyor
A Belt Conveyor is the complete machine, including the frame, rollers, pulleys, drive and belting. The Conveyor Belt is only the moving belt that carries the product, and it is one component of the machine.
PVC and PU belting are widely used for dry crops. The right choice depends on the crop, hygiene requirement and operating conditions, and our engineers recommend the belt once these are confirmed.
Yes, within the limit set by the belt surface and the product itself. Gentle inclines work well with a plain belt, while steeper runs may need a profiled belt. For a vertical lift, a bucket elevator is the better choice.
Sizing depends on crop type, bulk density, required throughput, conveying distance and plant layout. Share these details with our engineering team and they will recommend a suitable configuration.
Yes. Belt width, length, incline, discharge height, drive and belt type are configured to match the crop and the machines on your line.
Yes, provided the belt is cleaned between crops and the scraper and skirting are set correctly. For seed lots where mixing is a concern, a thorough clean-down between lots is recommended.
